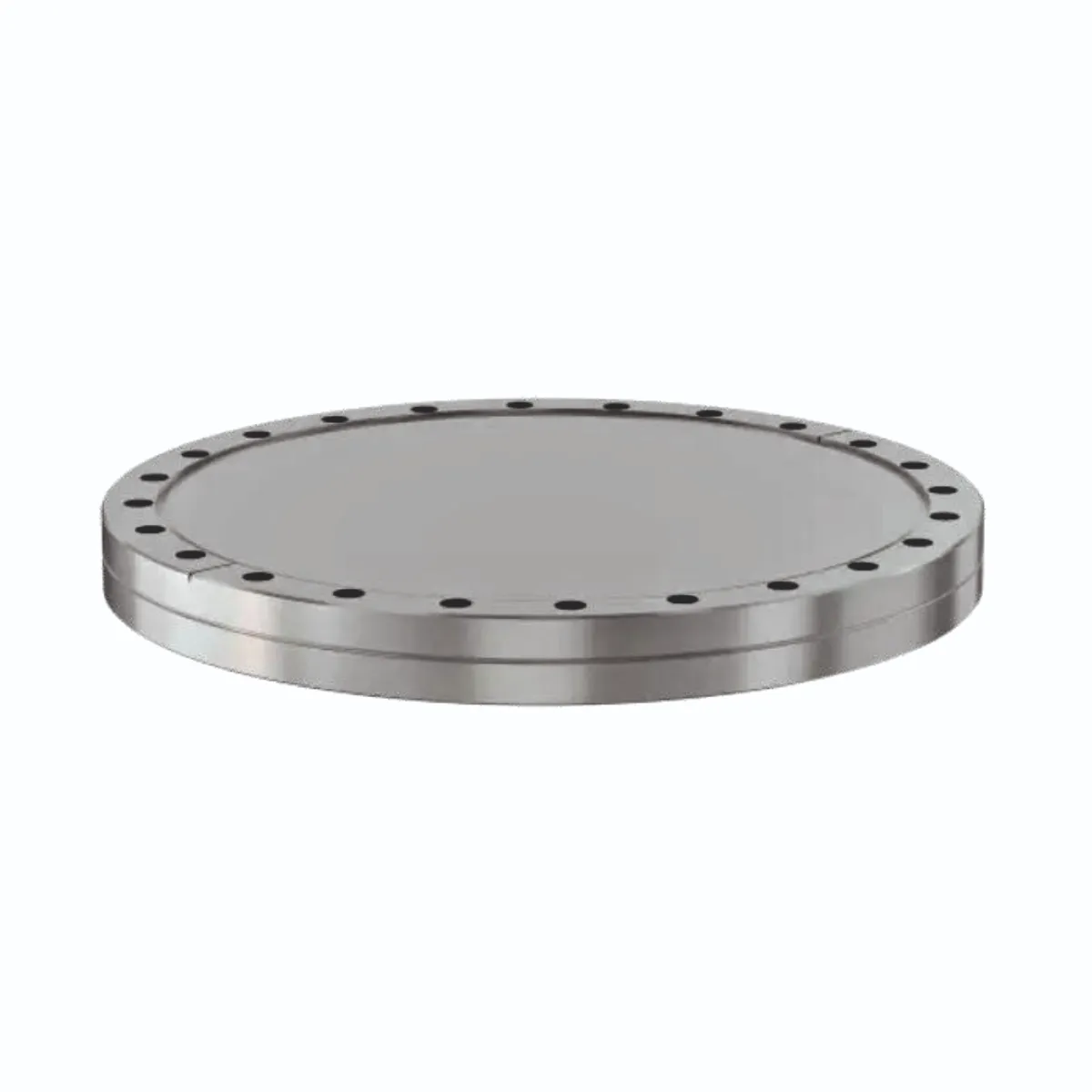

CF Blank Flange, Rotatable, Clearance Bolt Holes Diagram-A
Description
Specification
- Tube OD: 1/4 to 14″ inches (6.35 to 355.6 mm)
- Fittings: Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
- Material: 304 Standard (304L, 316 & 316L available upon request)
- Gaskets: Viton
- Fasteners: Bolts – Stainless Steel
- Vacuum Range: Elastomer seal: ≥1 x 10-8 mbar – High Vacuum
- Temperature Range: Elastomer seal: -20°C to 150°C
Dimensions in Inches(mm)
| Part Number | Flange (CF) | A | B | C | Bolt Holes | Bolt Diameter |
|---|---|---|---|---|---|---|
| ST-CF-133000R | 1.33 (33.78) | 1.33 (33.78) | 1.062 (26.98) | 0.300 (7.62) | 6 | 0.172 (4.37) |
