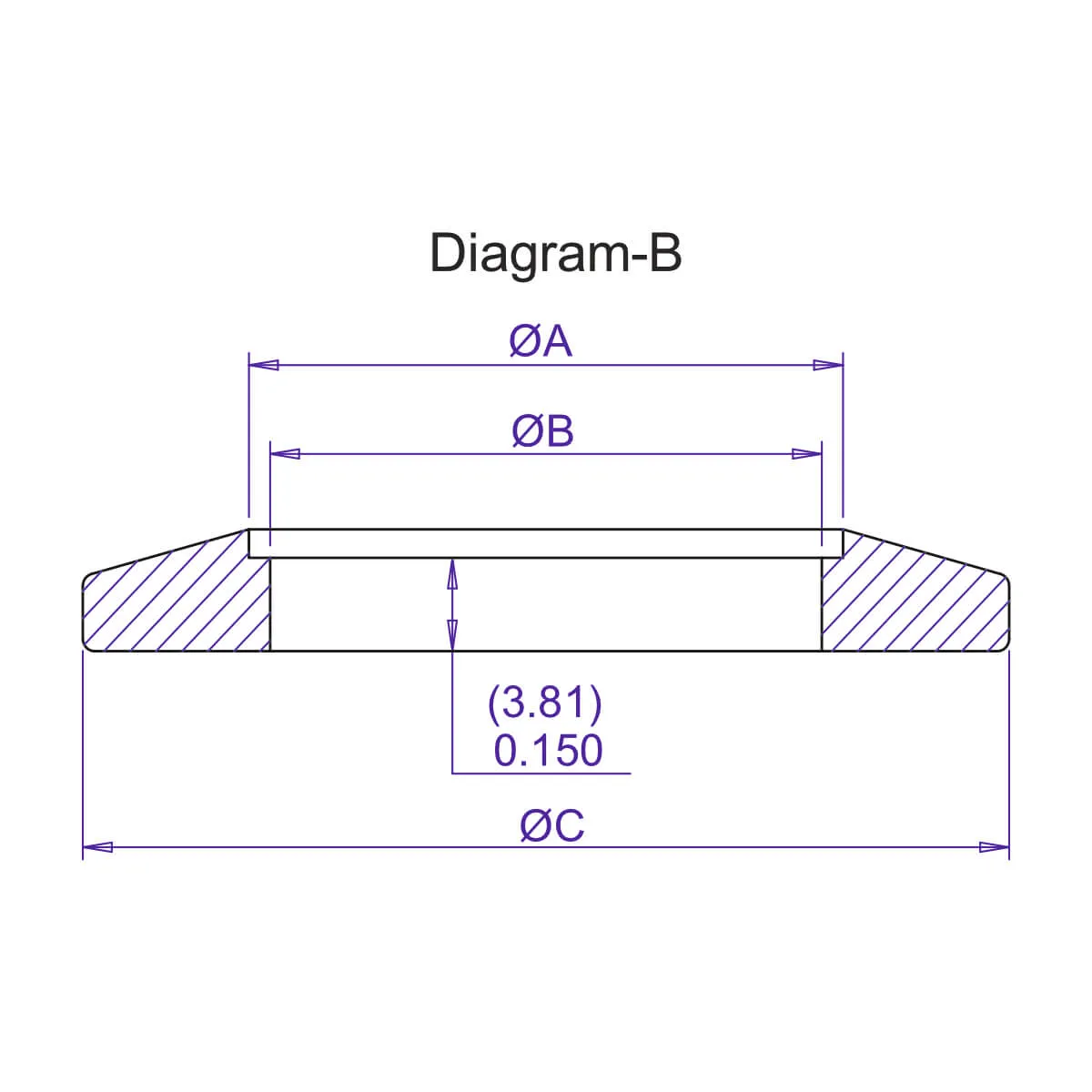

KF Bored Flange Diagram-B

Description

Tube OD : 3/8 to 2″ inches (9.53 to 50.8 mm)
Tube Finishes : Beadblast (Tumbled Standard & Electro finishes available upon request)
Material : 304 Standard (304L, 316 & 316L available upon request)
O-Rings : Viton Standard (Buna & Silicone available upon request)
Fasteners : Wing nut & bulkhead clamps – Aluminium
Vacuum Range : Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C
- Silicone: -50°C to 230°C

Part Number	Flange (KF)	Tube OD	A	B	C
ST-KF-16BB-075	16	3/4 (19.05)	0.76 (19.30)	0.68 (17.27)	1.18 (29.97)
