Specification
- Tube OD : 2-1/2 to 20″ inches (63.5 to 508 mm)
- Fittings : Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
- Material : 304 Standard (304L, 316 & 316L available upon request)
- O-Rings : Viton Standard (Buna available upon request)
- Fasteners : Claw Clamps-Aluminium, Bolts-Stainless Steel
- Vacuum Range : Elastomer seal: ≥1 x 10-8 mbar – High Vacuum
- Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C

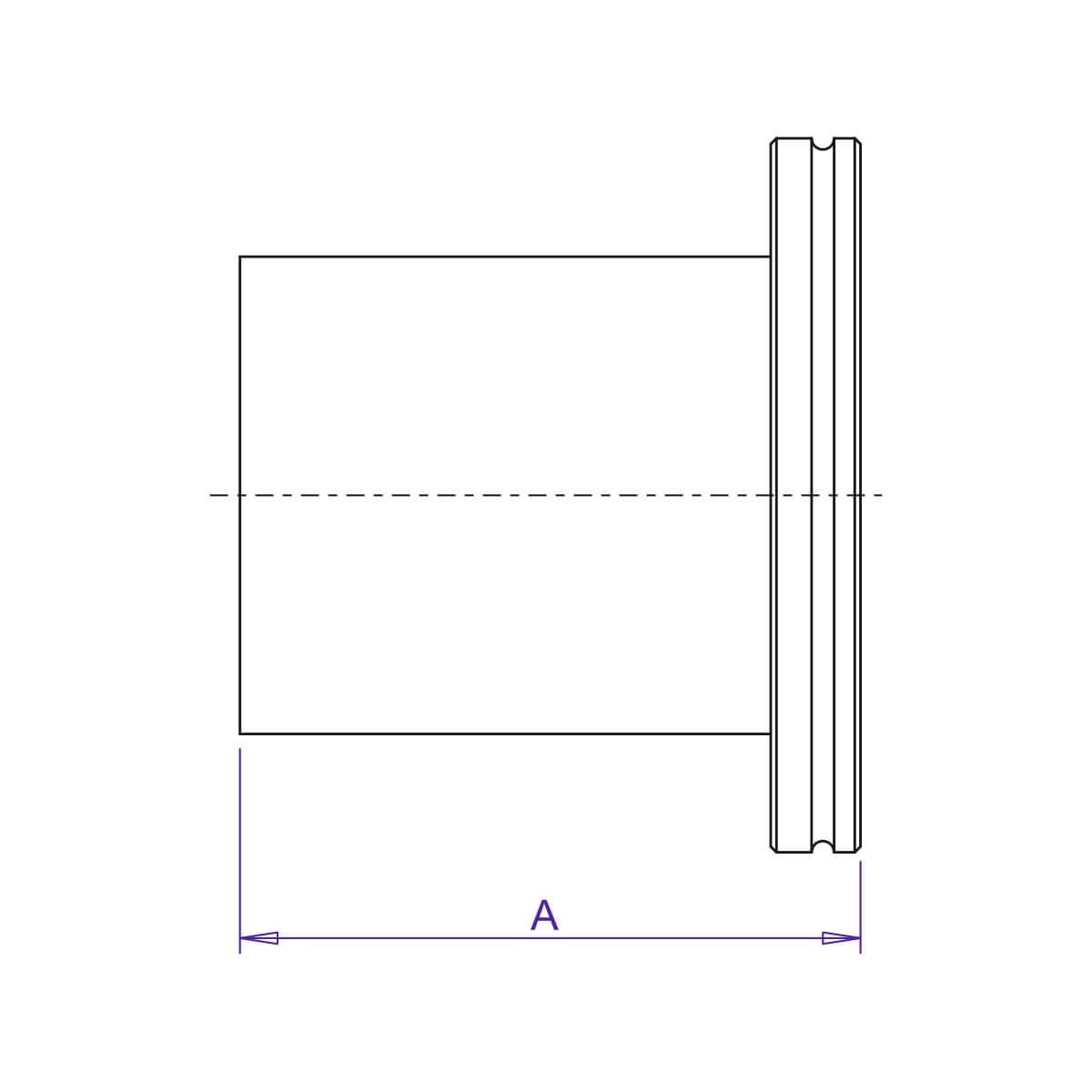

Dimensions in Inches(mm)
| Part Number | Flange (ISO) | Tube OD | A |
|---|
| ST-IS-63HNS | 63 | 2-1/2 (63.50) | 3.25 (82.55) |
| ST-IS-63HN | 63 | 2-1/2 (63.50) | 3.94 (100.80) |
| ST-IS-63HNL | 63 | 2-1/2 (63.50) | 4.00 (101.60) |
| ST-IS-80HNS | 80 | 3 (76.20) | 3.50 (88.90) |
| ST-IS-80HN | 80 | 3 (76.20) | 3.94 (100.80) |
| ST-IS-100HNS | 100 | 4 (101.60) | 3.94 (100.80) |
| ST-IS-100HN | 100 | 4 (101.60) | 4.13 (104.90) |
| ST-IS-100HNL | 100 | 4 (101.60) | 5.12 (130.05) |
| ST-IS-160HNS | 160 | 6 (152.40) | 3.94 (100.80) |
| ST-IS-160HN | 160 | 6 (152.40) | 5.38 (136.65) |
| ST-IS-160HNL | 160 | 6 (152.40) | 6.44 (163.58) |
| ST-IS-200HN | 200 | 8 (203.20) | 7.38 (187.45) |
| ST-IS-250HN | 250 | 10 (254.00) | 9.88 (250.95) |
| ST-IS-320HN | 320 | 12 (304.80) | 9.88 (250.95) |
| ST-IS-400HN | 400 | 16 (406.40) | 9.88 (250.95) |
| ST-IS-500HN | 500 | 20 (508.00) | 9.88 (250.95) |
