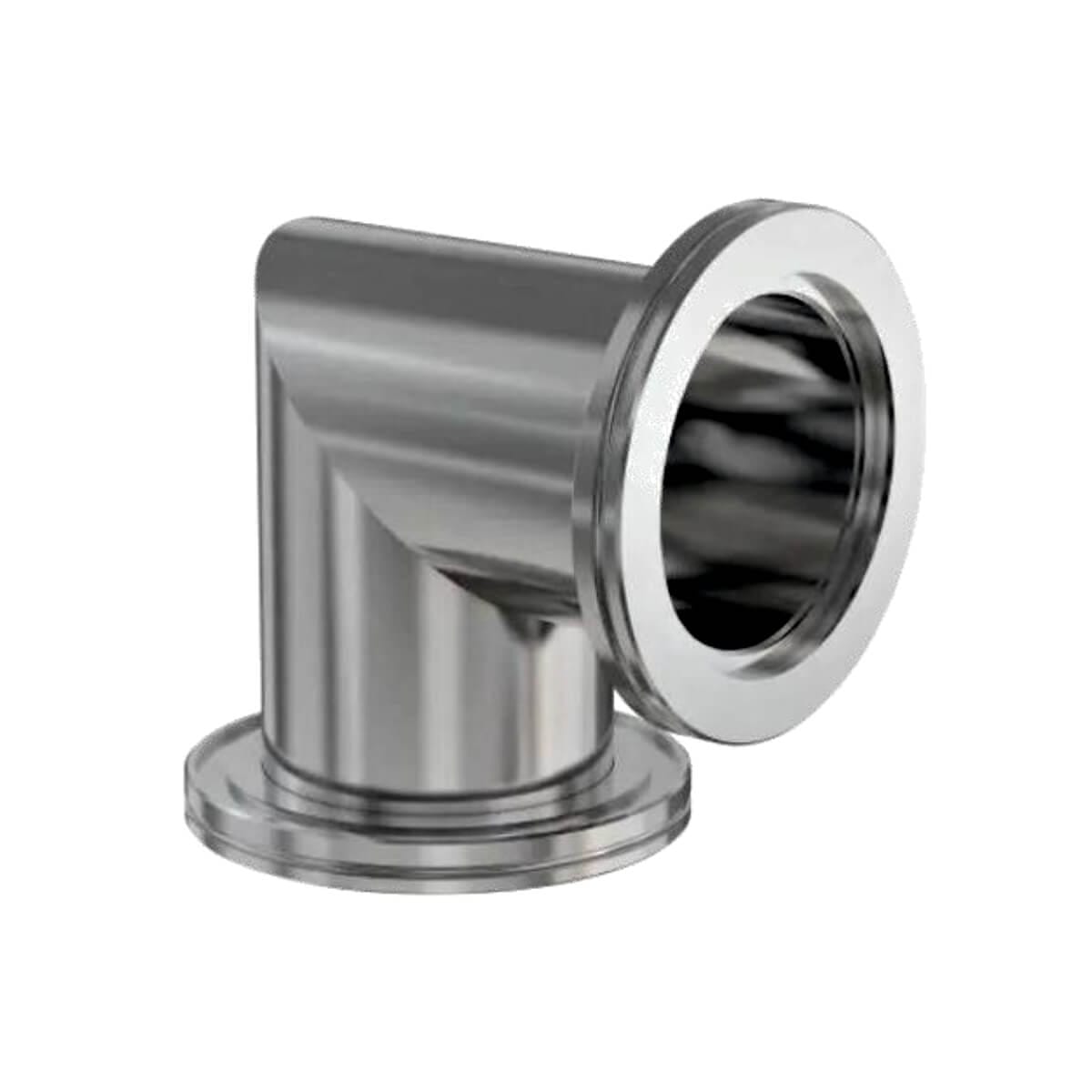

ISO 90° Mitered Elbows

Description

Tube OD : 2-1/2 to 20″ inches (63.5 to 508 mm)
Fittings : Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
Material : 304 Standard (304L, 316 & 316L available upon request)
O-Rings : Viton Standard (Buna available upon request)
Fasteners : Claw Clamps-Aluminium, Bolts-Stainless Steel
Vacuum Range : Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C

Part Number	Flange Size (ISO)	Tube OD	A
ST-IS-63EL90M	63	2-1/2 (63.50)	3.25 (82.55)
ST-IS-80EL90M	80	3 (76.20)	3.50 (88.90)
ST-IS-100EL90M	100	4 (101.60)	4.13 (104.90)
ST-IS-160EL90M	160	6 (152.40)	5.38 (136.65)
ST-IS-200EL90M	200	8 (203.20)	7.38 (187.45)
ST-IS-250EL90M	250	10 (254.00)	9.88 (250.95)
