CF 45° Radius Elbows with Tangents

Description

Tube OD: 1/4 to 14″ inches (6.35 to 355.6 mm)
Fittings: Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
Material: 304 Standard (304L, 316 & 316L available upon request)
Gaskets: Viton
Fasteners: Bolts – Stainless Steel
Vacuum Range: Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range: Elastomer seal: -20°C to 150°C

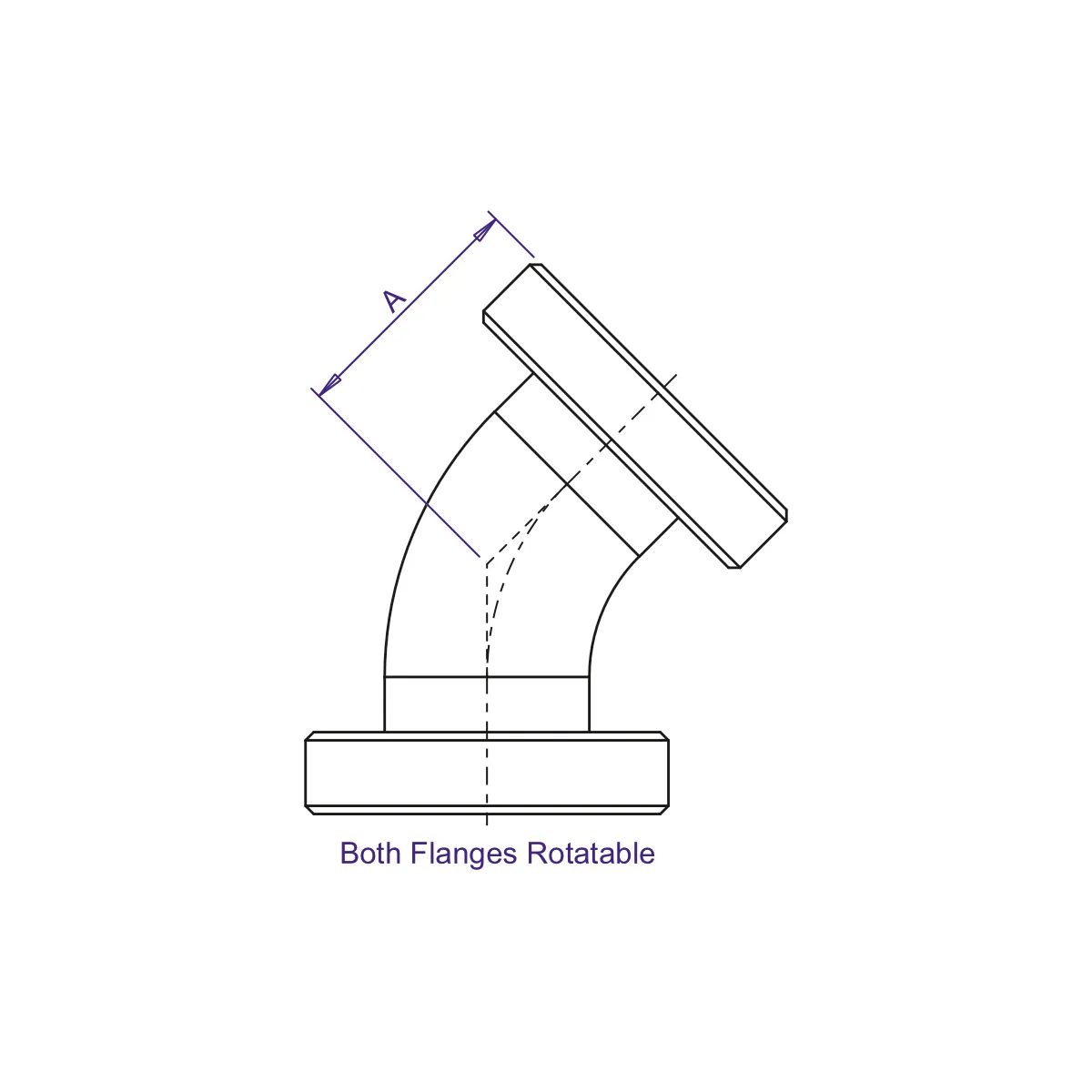

Part Number	Flange (CF)	Tube OD	A
ST-CF-133EL45T	1.33 (33.78)	3/4 (19.50)	0.94 (23.88)
ST-CF-212EL45T	2.12 (53.85)	1 (25.40)	1.14 (28.96)
ST-CF-275EL45T	2.75 (69.85)	1-1/2 (38.10)	1.74 (44.20)
ST-CF-338EL45T	3.38 (85.85)	2 (50.80)	2.07 (52.58)
ST-CF-450EL45T	4.50 (114.30)	2-1/2 (63.50)	3.37 (85.60)
ST-CF-462EL45T	4.62 (117.35)	3 (76.20)	3.96 (100.58)
ST-CF-600EL45T	6.00 (152.40)	4 (101.60)	5.22 (132.59)
