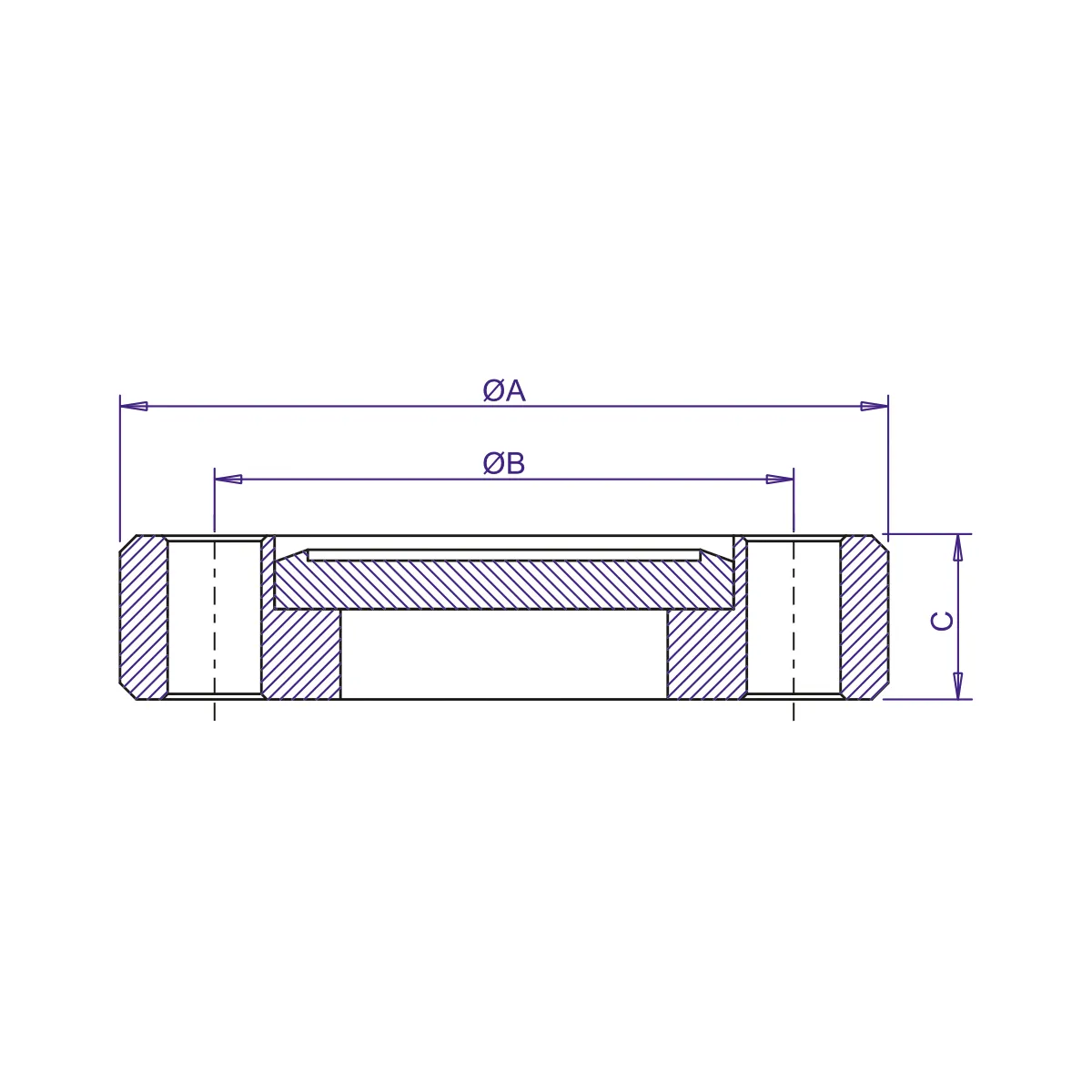

CF Blank Flange, Rotatable, Tapped Bolt Holes Diagram-B

Description

Tube OD: 1/4 to 14″ inches (6.35 to 355.6 mm)
Fittings: Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
Material: 304 Standard (304L, 316 & 316L available upon request)
Gaskets: Viton
Fasteners: Bolts – Stainless Steel
Vacuum Range: Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range: Elastomer seal: -20°C to 150°C

Part Number	Flange (CF)	A	B	C	Bolt Holes	Thread
ST-CF-212000RT	2.12 (53.85)	2.12 (53.85)	1.625 (41.28)	0.469 (11.91)	4	1/4-28
ST-CF-275000RT	2.75 (69.85)	2.73 (69.34)	2.312 (58.73)	0.500 (12.7)	6	1/4-28
ST-CF-338000RT	3.38 (85.85)	3.36 (85.34)	2.850 (72.39)	0.687 (17.45)	8	5/16-24
ST-CF-450000RT	4.50 (114.30)	4.47 (113.54)	3.628 (92.15)	0.687 (17.45)	8	5/16-24
ST-CF-462000RT	4.62 (117.35)	4.61 (117.09)	4.030 (102.36)	0.812 (20.62)	10	5/16-24
ST-CF-600000RT	6.00 (152.40)	5.97 (151.64)	5.128 (130.25)	0.781 (19.84)	16	5/16-24
ST-CF-675000RT	6.75 (171.45)	6.73 (170.94)	5.969 (151.61)	0.844 (21.44)	18	5/16-24
ST-CF-800000RT	8.00 (203.20)	7.97 (202.44)	7.128 (181.05)	0.937 (22.71)	20	5/16-24
ST-CF-1000000RT	10.00 (254.00)	9.97 (253.24)	9.128 (231.85)	0.968 (24.59)	24	5/16-24
ST-CF-1200000RT	12.00 (304.80)	12.00 (304.80)	11.181 (284.00)	1.125 (28.58)	32	5/16-24
ST-CF-1325000RT	13.25 (336.55)	13.25 (336.55)	12.055 (306.20)	1.125 (28.58)	30	3/18-24
ST-CF-1400000RT	14.00 (355.60)	14.00 (355.60)	12.810 (325.37)	1.125 (28.58)	30	3/18-24
ST-CF-1450000RT	14.50 (368.30)	14.50 (368.30)	13.310 (338.07)	1.125 (28.58)	32	3/18-24
ST-CF-1650000RT	16.50 (419.10)	16.50 (419.10)	15.310 (388.87)	1.125 (28.58)	36	3/18-24
