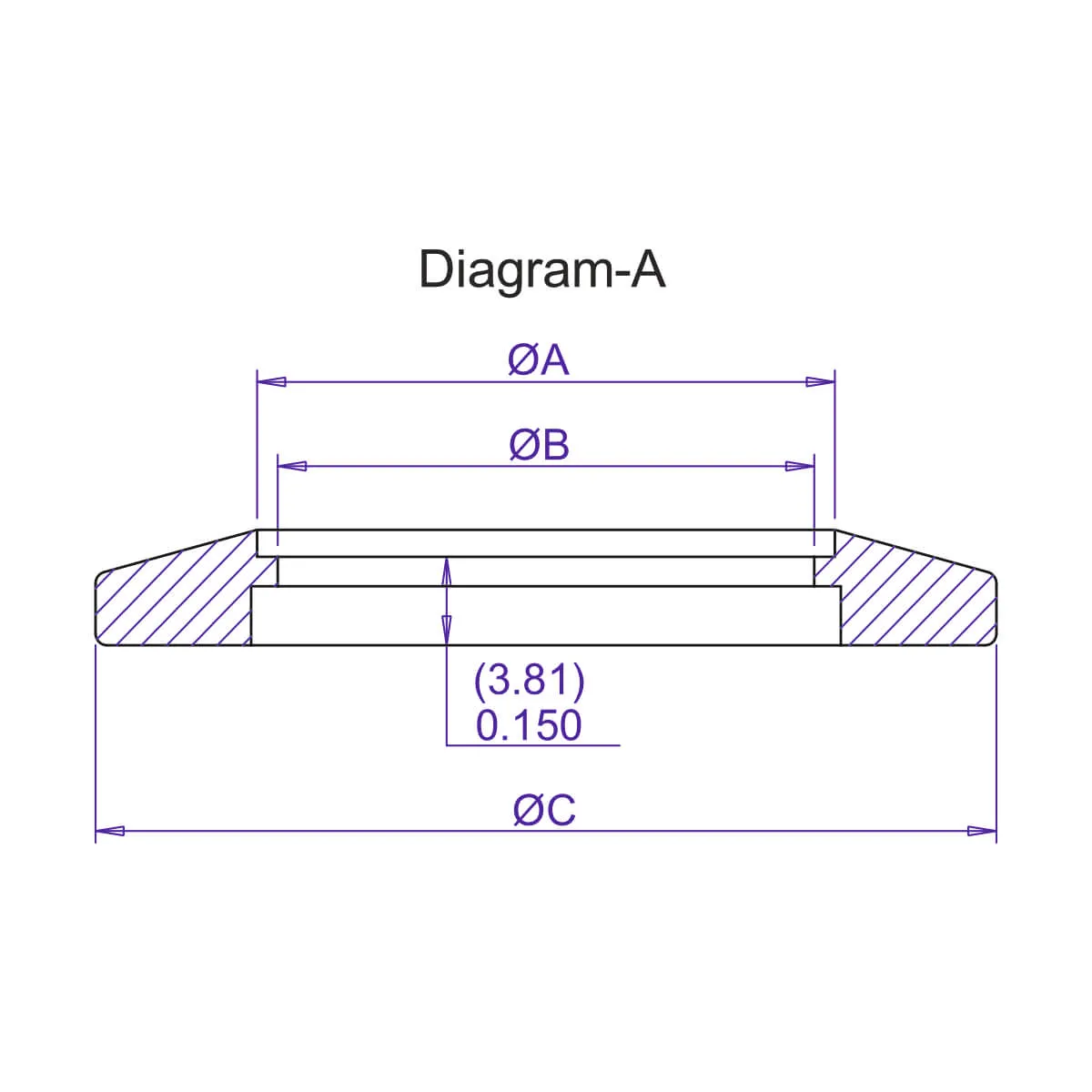

KF Bored Flange Diagram-A
Description
Specification
- Tube OD : 3/8 to 2″ inches (9.53 to 50.8 mm)
- Tube Finishes : Beadblast (Tumbled Standard & Electro finishes available upon request)
- Material : 304 Standard (304L, 316 & 316L available upon request)
- O-Rings : Viton Standard (Buna & Silicone available upon request)
- Fasteners : Wing nut & bulkhead clamps – Aluminium
- Vacuum Range : Elastomer seal: ≥1 x 10-8 mbar – High Vacuum
- Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C
- Silicone: -50°C to 230°C
Dimensions in Inches(mm)
| Part Number | Flange (KF) | Tube OD | A | B | C |
|---|---|---|---|---|---|
| ST-KF-10BB-038 | 10 | 3/8 (9.53 mm) | 0.38 (9.65 mm) | 0.326 (8.28 mm) | 1.180 (29.97 mm) |
| ST-KF-10BB-050 | 10 | 1/2 (12.70 mm) | 0.51 (12.95 mm) | 0.451 (11.46 mm) | 1.180 (29.97 mm) |
| ST-KF-16BB-038 | 16 | 3/8 (9.53 mm) | 0.38 (9.65 mm) | 0.326 (8.28 mm) | 1.180 (29.97 mm) |
| ST-KF-16BB-050 | 16 | 1/2 (12.70 mm) | 0.51 (12.95 mm) | 0.451 (11.46 mm) | 1.180 (29.97 mm) |
| ST-KF-25BB-038 | 25 | 3/8 (9.53 mm) | 0.38 (9.65 mm) | 0.326 (8.28 mm) | 1.575 (40.01 mm) |
| ST-KF-25BB-050 | 25 | 1/2 (12.70 mm) | 0.51 (12.95 mm) | 0.451 (11.46 mm) | 1.575 (40.01 mm) |
| ST-KF-25BB-075 | 25 | 3/4 (19.05 mm) | 0.76 (19.30 mm) | 0.715 (18.16 mm) | 1.575 (40.01 mm) |
| ST-KF-25BB-100 | 25 | 1 (25.40 mm) | 1.01 (25.65 mm) | 0.938 (23.83 mm) | 1.575 (40.01 mm) |
| ST-KF-40BB-038 | 40 | 3/8 (9.53 mm) | 0.38 (9.65 mm) | 0.326 (8.28 mm) | 2.160 (54.86 mm) |
| ST-KF-40BB-050 | 40 | 1/2 (12.70 mm) | 0.51 (12.95 mm) | 0.451 (11.46 mm) | 2.160 (54.86 mm) |
| ST-KF-40BB-075 | 40 | 3/4 (19.05 mm) | 0.76 (19.30 mm) | 0.715 (18.16 mm) | 2.160 (54.86 mm) |
| ST-KF-40BB-100 | 40 | 1 (25.40 mm) | 1.01 (25.65 mm) | 0.938 (23.83 mm) | 2.160 (54.86 mm) |
| ST-KF-40BB-150 | 40 | 1-1/2 (38.10 mm) | 1.51 (38.35 mm) | 1.438 (36.53 mm) | 2.160 (54.86 mm) |
| ST-KF-50BB-038 | 50 | 3/8 (9.53 mm) | 0.38 (9.65 mm) | 0.326 (8.28 mm) | 2.950 (74.93 mm) |
| ST-KF-50BB-050 | 50 | 1/2 (12.70 mm) | 0.51 (12.95 mm) | 0.451 (11.46 mm) | 2.950 (74.93 mm) |
| ST-KF-50BB-075 | 50 | 3/4 (19.05 mm) | 0.76 (19.30 mm) | 0.715 (18.16 mm) | 2.950 (74.93 mm) |
| ST-KF-50BB-100 | 50 | 1 (25.40 mm) | 1.01 (25.65 mm) | 0.938 (23.83 mm) | 2.950 (74.93 mm) |
| ST-KF-50BB-150 | 50 | 1-1/2 (38.10 mm) | 1.51 (38.35 mm) | 1.438 (36.53 mm) | 2.950 (74.93 mm) |
| ST-KF-50BB-200 | 50 | 2 (50.80 mm) | 2.01 (51.05 mm) | 1.938 (49.23 mm) | 2.950 (74.93 mm) |
