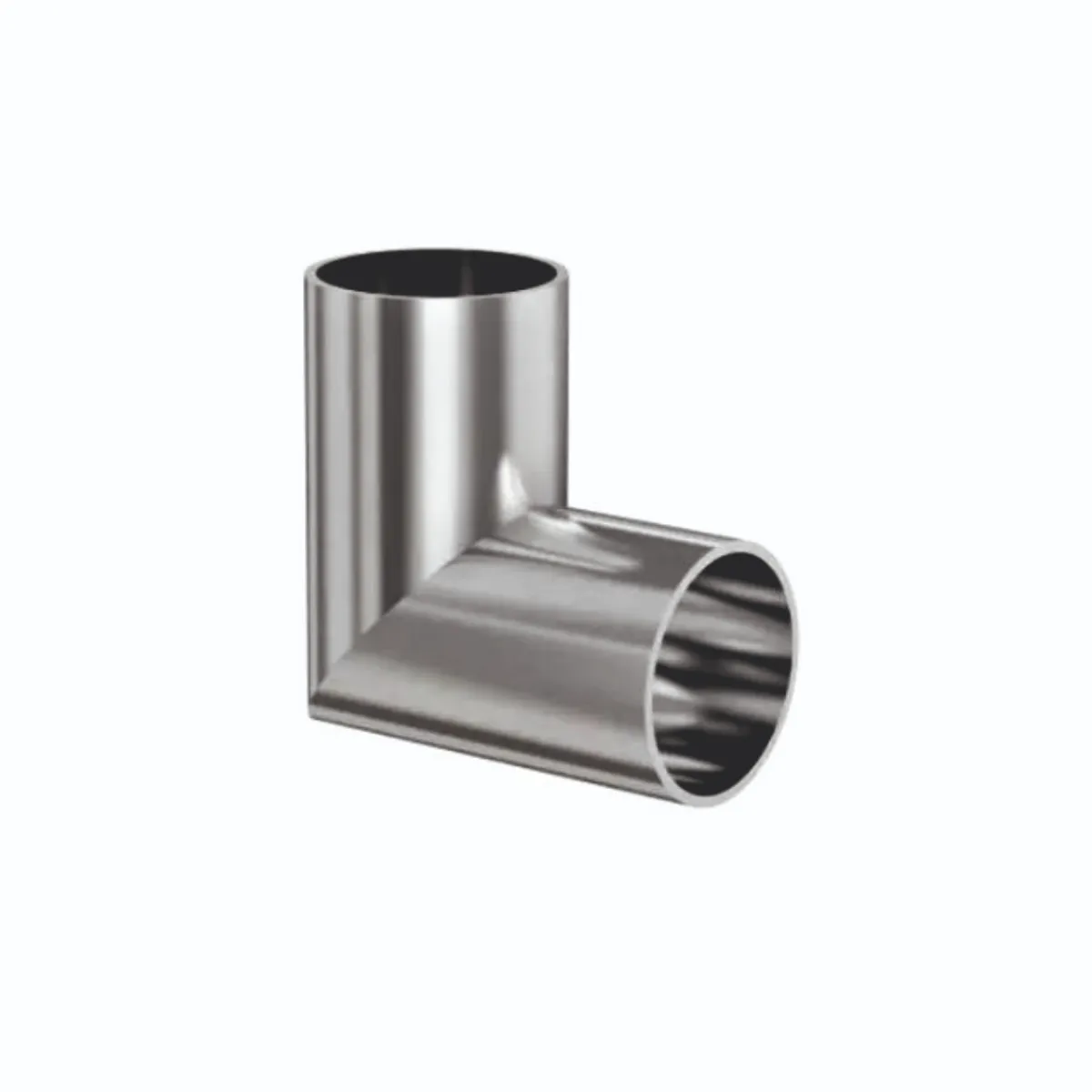

90° Mitered Elbows

Description

Tube OD: 1/2 to 10″ inches (12.7 to 254 mm)
Fittings: Tube Finishes: Tumbled Standard (Beadblast & Electro finishes available upon request)
Material: 304 Standard (304L, 316 & 316L available upon request)
Vacuum Range: ≥1 x 10^-13 mbar
Temperature Range: Elastomer seal: -200°C to 450°C

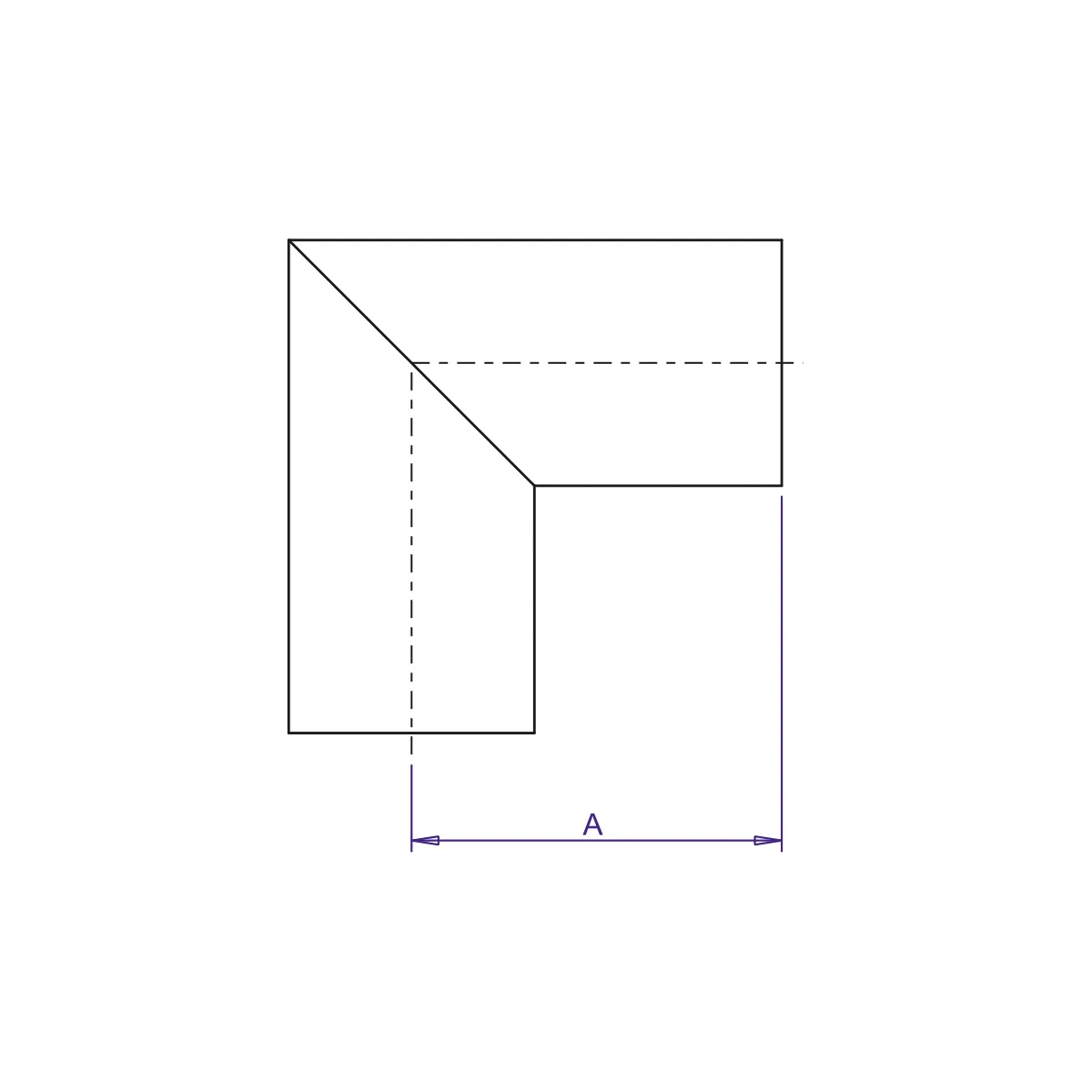

Part Number	Tube OD	A	Wall Thickness
ST-WF-075EL90M	3/4 (19.05)	1.00 (25.40)	0.035 (0.89)
ST-WF-100EL90M	1 (25.40)	1.88 (47.75)	0.065 (1.65)
ST-WF-150EL90M	1-1/2 (38.10)	2.25 (57.15)	0.065 (1.65)
ST-WF-150EL90ML	1-1/2 (38.10)	2.41 (61.21)	0.065 (1.65)
ST-WF-200EL90M	2 (50.80)	2.61 (66.29)	0.065 (1.65)
ST-WF-200EL90ML	2 (50.80)	3.00 (76.20)	0.065 (1.65)
ST-WF-250EL90M	2-1/2 (63.50)	3.00 (76.20)	0.065 (1.65)
ST-WF-250EL90ML	2-1/2 (63.50)	3.75 (95.25)	0.065 (1.65)
ST-WF-300EL90M	3 (76.20)	3.25 (82.55)	0.065 (1.65)
ST-WF-400EL90M	4 (101.60)	3.88 (98.55)	0.083 (2.11)
ST-WF-400EL90ML	4 (101.60)	4.87 (123.70)	0.083 (2.11)
ST-WF-500EL90M	5 (127.00)	4.25 (107.95)	0.083 (2.11)
ST-WF-600EL90M	6 (152.40)	5.00 (127.00)	0.083 (2.11)
ST-WF-600EL90ML	6 (152.40)	6.06 (153.92)	0.083 (2.11)
ST-WF-800EL90M	8 (203.20)	7.00 (177.80)	0.120 (3.05)
ST-WF-1000EL90M	10 (254.00)	9.50 (241.30)	0.120 (3.05)
