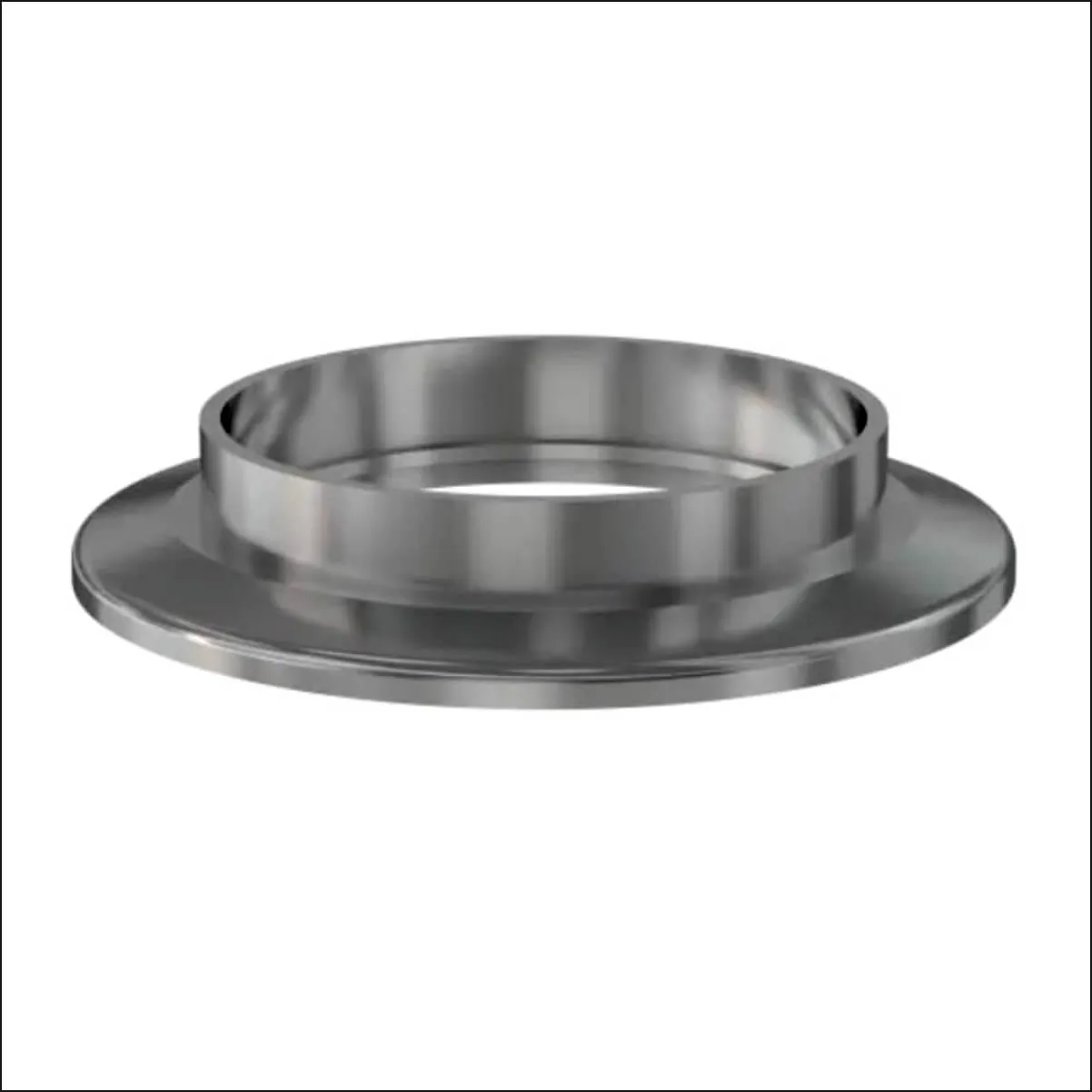

KF Socket Weld Flange

Description

Tube OD : 3/8 to 2″ inches (9.53 to 50.8 mm)
Tube Finishes : Beadblast (Tumbled Standard & Electro finishes available upon request)
Material : 304 Standard (304L, 316 & 316L available upon request)
O-Rings : Viton Standard (Buna & Silicone available upon request)
Fasteners : Wing nut & bulkhead clamps – Aluminium
Vacuum Range : Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C
- Silicone: -50°C to 230°C

Part Number	Flange Size (KF)	Tube OD	A	B	C	D	E
ST-KF-10SW	10	1/2 (12.70)	1.180 (29.97)	0.480 (12.19)	0.51 (12.95)	0.610 (15.49)	–
ST-KF-16SW	16	3/4 (19.05)	1.180 (29.97)	0.680 (17.27)	0.76 (19.30)	0.798 (20.27)	–
ST-KF-25SW	25	1 (25.40)	1.575 (40.01)	1.031 (26.19)	1.01 (25.65)	1.140 (28.96)	0.938 (23.83)
ST-KF-40SW	40	1-1/2 (38.10)	2.160 (54.86)	1.620 (41.15)	1.51 (38.32)	1.640 (41.66)	1.180 (36.53)
ST-KF-50SW	50	2 (50.80)	2.950 (74.93)	2.060 (52.32)	2.01 (51.05)	2.140 (54.36)	1.575 (49.23)
