Description
Specification
- Tube OD : 3/8 to 2″ inches (9.53 to 50.8 mm)
- Tube Finishes : Beadblast (Tumbled Standard & Electro finishes available upon request)
- Material : 304 Standard (304L, 316 & 316L available upon request)
- O-Rings : Viton Standard (Buna & Silicone available upon request)
- Fasteners : Wing nut & bulkhead clamps – Aluminium
- Vacuum Range : Elastomer seal: ≥1 x 10-8 mbar – High Vacuum
- Temperature Range :
- Viton: -20°C to 200°C
- Buna: -30°C to 110°C
- Silicone: -50°C to 230°C

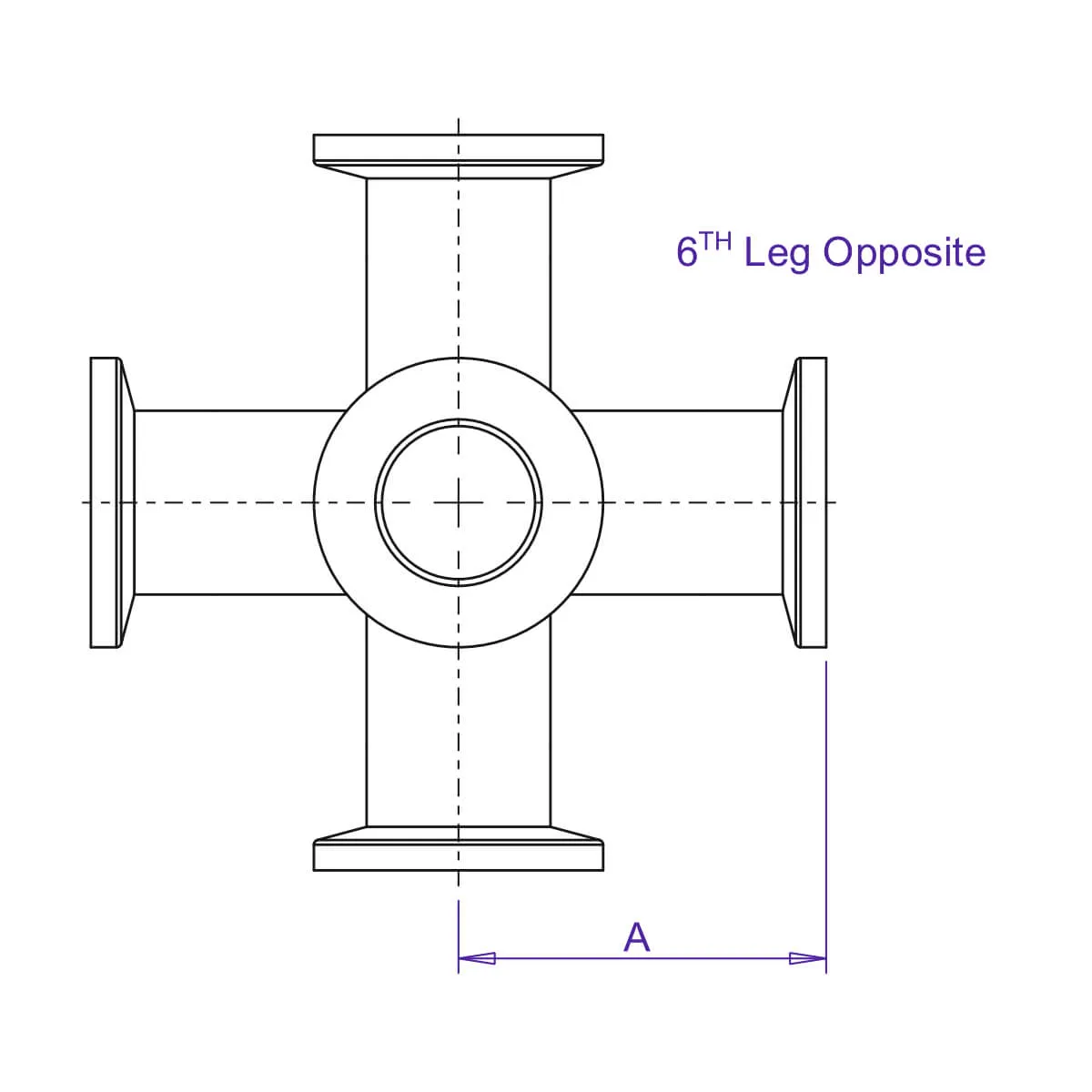

Dimensions in Inches(mm)
| Part Number | Flange (KF) | Tube OD | A |
|---|
| ST-KF-16C6 | 16 | 3/4 (19.05) | 1.50 (38.10) |
| ST-KF-25C6 | 25 | 1 (25.40) | 2.03 (51.56) |
| ST-KF-40C6 | 40 | 1-1/2 (38.10) | 2.40 (60.96) |
| ST-KF-50C6 | 50 | 2 (50.80) | 3.15 (80.01) |
