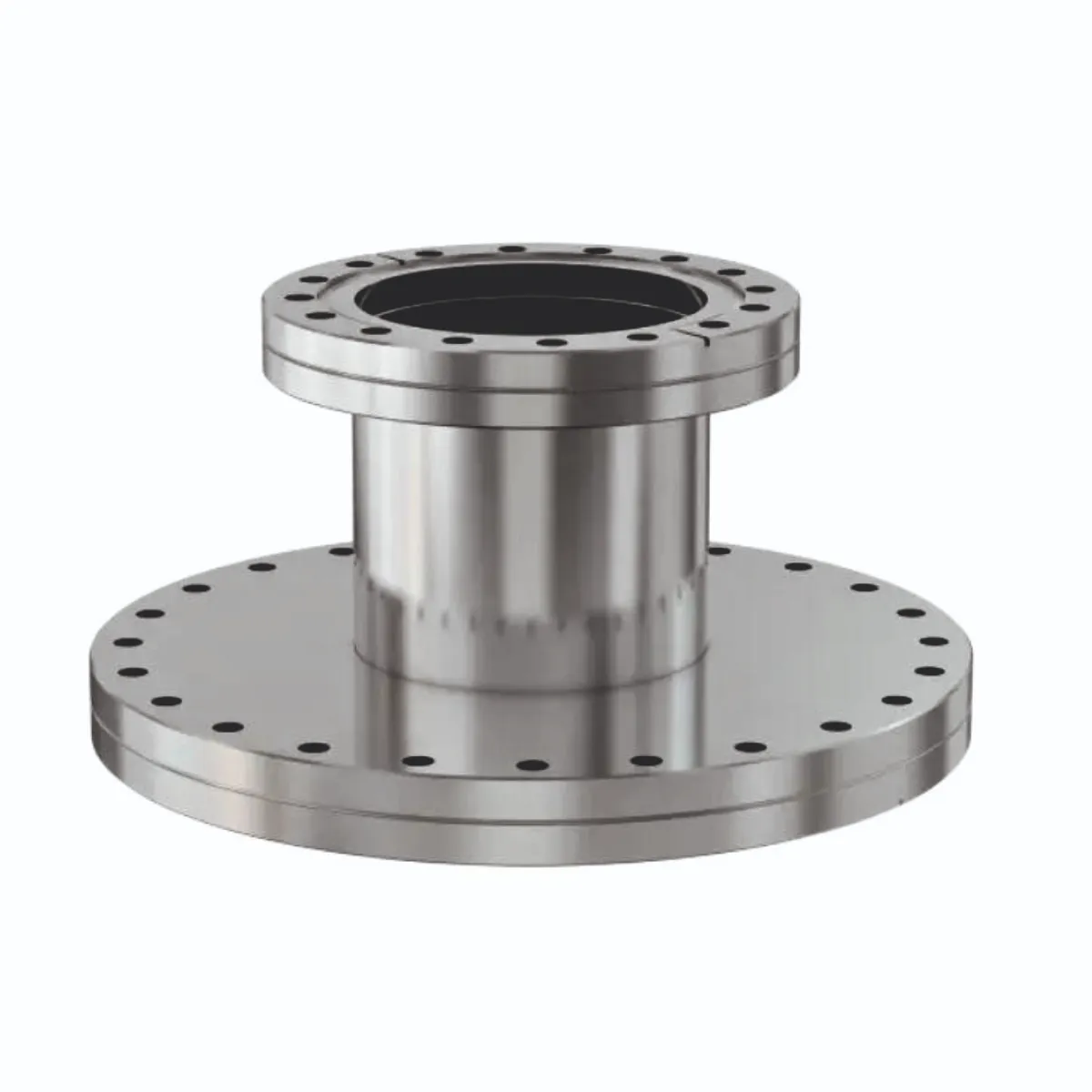

CF Reducer Nipples

Description

Tube OD: 1/4 to 14″ inches (6.35 to 355.6 mm)
Fittings: Tube Finishes: Beadblast (Tumbled Standard & Electro finishes available upon request)
Material: 304 Standard (304L, 316 & 316L available upon request)
Gaskets: Viton
Fasteners: Bolts – Stainless Steel
Vacuum Range: Elastomer seal: ≥1 x 10^-8 mbar – High Vacuum
Temperature Range: Elastomer seal: -20°C to 150°C

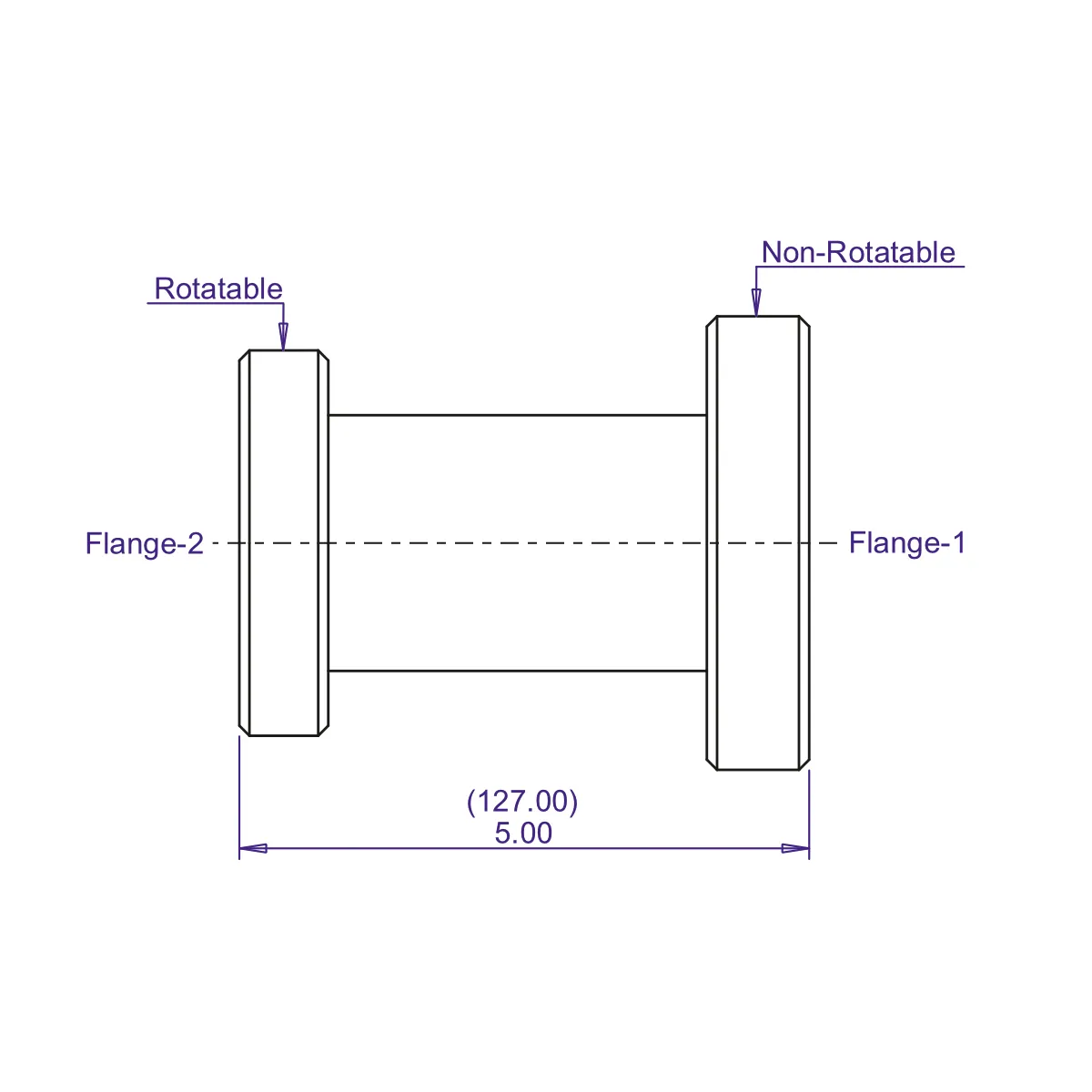

Part Number	Flange-1 (CF)	Flange-2 (CF)	Tube OD
ST-CF-600X275RN	6.00 (152.40)	2.75 (69.85)	1-1/2 (38.10)
ST-CF-800X275RN	8.00 (203.20)	2.75 (69.85)	1-1/2 (38.10)
ST-CF-800X450RN	8.00 (203.20)	4.50 (114.30)	2-1/2 (63.50)
ST-CF-800X600RN	8.00 (203.20)	6.00 (152.40)	4 (101.60)
ST-CF-1000X275RN	10.00 (254.00)	2.75 (69.85)	1-1/2 (38.10)
ST-CF-1000X450RN	10.00 (254.00)	4.50 (114.30)	2-1/2 (63.50)
ST-CF-1000X600RN	10.00 (254.00)	6.00 (152.40)	4 (101.60)
ST-CF-1000X800RN	10.00 (254.00)	8.00 (203.20)	6 (152.40)
ST-CF-1325X1000RN	13.25 (336.55)	10.00 (254.00)	8 (203.20)
ST-CF-1400X1200RN	14.00 (355.60)	12.00 (304.80)	10 (254.00)
